1. What a Missing Ground Wire Means
A missing ground wire does not, by itself, prove that a light fixture is unsafe. It does mean the installer must identify the luminaire’s protection class and the circuit arrangement before making a connection. The key question is not whether the light source is LED, low wattage, dimmable, or used indoors. It is whether the complete luminaire is designed to rely on an equipment grounding conductor for protection against electric shock.
For equipment that needs protective earthing, the earth conductor bonds accessible metal parts back to the supply-side grounding system. If an insulation fault energises the enclosure, that low-impedance path helps the protective device disconnect the circuit. It is not simply a wire that sends electricity into soil. The path, bonding, overcurrent protection, and local wiring method work together. OSHA likewise describes the path from circuits, equipment, and enclosures as permanent and continuous.

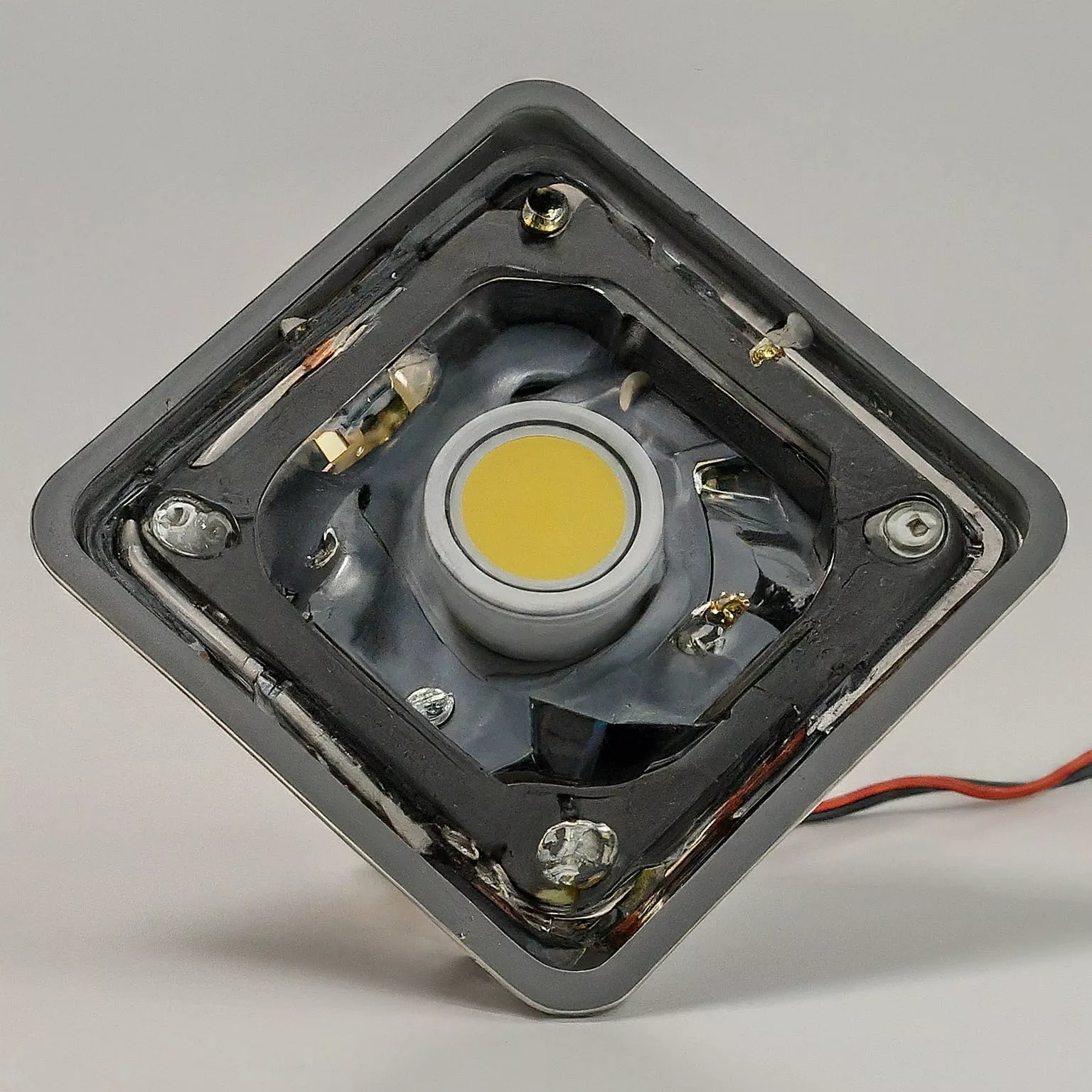

2. Class I, Class II, and Class III Luminaires
IEC 60598-1 covers general luminaire safety requirements, including classification and electrical construction. In practice, a product label, declaration, wiring diagram, and installation instruction must agree. Do not assume that a metal housing is Class I or that an LED product is Class II. The declared class is the starting point for the installation decision.
3. Conditions That Change the Decision
The environment does not replace the class marking, but it changes the consequences of a fault. Damp locations, outdoor mounting, public contact, metal supports, corrosive atmospheres, and a damaged cable gland all deserve closer scrutiny. A Class I product installed on an ungrounded branch circuit is not converted into Class II because it is low power or because a GFCI is present.
Grounding and ingress protection also solve different problems. An IP rating evaluates enclosure resistance to access, solids, and water; it does not prove protective-earthing continuity. CPS explains this distinction for outdoor venues in its IP rating guide for outdoor stadium lights. Corrosion can further affect terminals, bonding points, and seals, so coastal projects should also consider the mechanisms described in the luminaire salt-spray engineering guide.
4. Verify the Luminaire and the Circuit
Before ordering or fitting a replacement, a qualified installer should read the rating label and installation instruction, identify the supply voltage, locate any protective-earth terminal, and inspect the cable, junction box, connector, and mounting bracket. For a Class I luminaire, verify continuity of the equipment grounding conductor and bonding through any metallic mounting path. A paint-coated bracket, loose lug, or corroded fastener can interrupt an otherwise correct design.
The fixture driver should be evaluated separately. A driver may support 0–10 V, DALI, or another dimming interface without that fact determining the luminaire class. Flicker, buzzing, or failure can result from compatibility, wiring, supply quality, or a damaged driver. CPS’s LED driver troubleshooting guide is useful for fault symptoms, but it is not a substitute for electrical testing by a competent person.
5. Outdoor, Industrial, and Sports Lighting
Large floodlights add mechanical and environmental interfaces that must be checked as a system: luminaire, bracket, pole, gland, cable, junction box, surge-protection arrangement, and protective conductor. Higher wattage can increase fault energy and installation consequence, but wattage is not the classification rule. The product instruction and local code determine whether protective earthing is required.
For example, the current Sirius 1200 W projection light page lists IP65 and 10 kV surge protection. Those specifications address weather exposure and transient protection, not a blanket declaration about every site’s grounding arrangement. Confirm the exact product revision, wiring diagram, protective-earth marking, and local installation requirements before procurement.
6. Safe Options for an Ungrounded Circuit
Do not improvise a ground connection to plumbing, a random structural member, or a separate rod without an engineered and code-compliant design. If a supplied Class I fixture has no suitable equipment grounding conductor at the point of installation, stop and have a qualified electrician assess the branch circuit. The normal solutions are to provide the required grounding path, select a correctly marked and suitable Class II product, or redesign the installation.
A GFCI or residual-current device can provide additional shock protection in applications where local rules require it, but it does not create a missing equipment grounding conductor and does not override the fixture instruction. Document the final model, class marking, conductor test, connections, and commissioning result. This makes the decision traceable for the owner, installer, and future maintenance team. Current product families can be reviewed through the CPS Lighting product center, then confirmed against the exact datasheet and installation manual.
7. Technical Sources
1. IEC 60598-1:2024, Luminaires — General requirements and tests.
2. IEC 61140:2016, Protection against electric shock.
3. OSHA 29 CFR 1926.404, wiring design and grounding protection.
4. IEC 60529, IP Code classification.
